High Voltage Adaptors for KPM169x DC Insulation Guards
Up to 1600VDC (up to 5000VDC on request)
Limits the measuring output signal to KPM169x series
Epoxy filled for electrical insulation
DescriptionDC Voltage Adapter for use in conjunction with
KPM169x series when the monitored DC voltage is higher than 60VDC.
The adapter is a passive resistive/capacity unit and is potted in polyurethane for electrical safety.
When the adapters is connected to the instrument the maximum voltage output is app. 60VDC.
Models:Type Voltage rangeRH2: min. 60VDC - max. 200VDC
RH4: min. 200VDC - max. 400VDC
RH8: min. 400VDC - max. 800VDC
RH12: min. 800VDC - max. 1200VDC
RH16: min. 1200VDC - max. 1600VDC

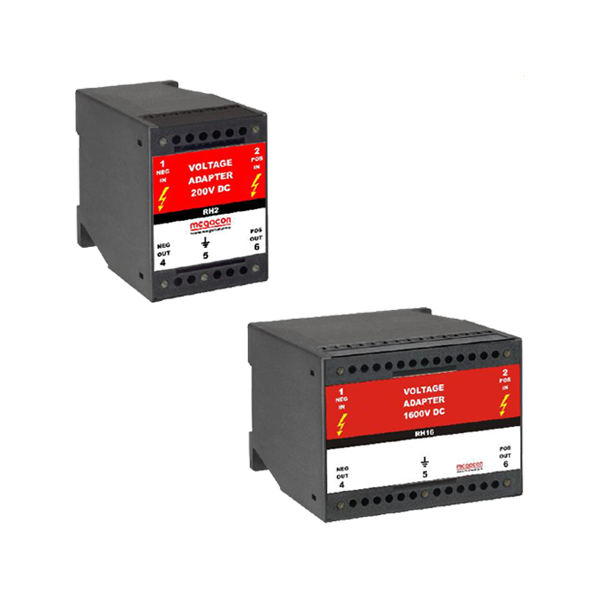

Dimensions:DIN rail mounted
RH2,
RH4 &
RH8: 55 x 110 x 75mm
RH12 &
RH16: 100 x 110 x 75mm
